    Light Weight Insulating Mullite Refractory Brick High Temp 1100 - 1500 Degree

    Ask Lasest Price
    Brand Name : CH Refractories
    Model Number : GYDD
    Certification : ISO
    Price : USD 300-1000 per Ton
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Ton per month
    Delivery Time : 5-15 working days
    • Product Details
    • Company Profile

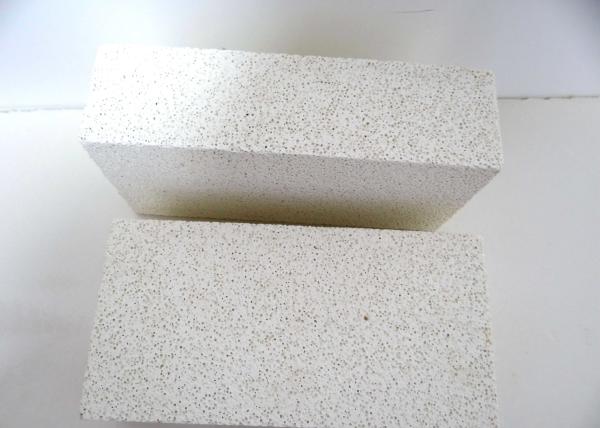

    Light Weight Insulating Mullite Refractory Brick High Temp 1100 - 1500 Degree

    Light Weight Insulating Mullite Insulation Brick High Temp 1100 - 1500 Degree


    Mullite Insulating Refractory Brick JM23 JM26 JM28 made by CH refractories is JM series according to international standard.

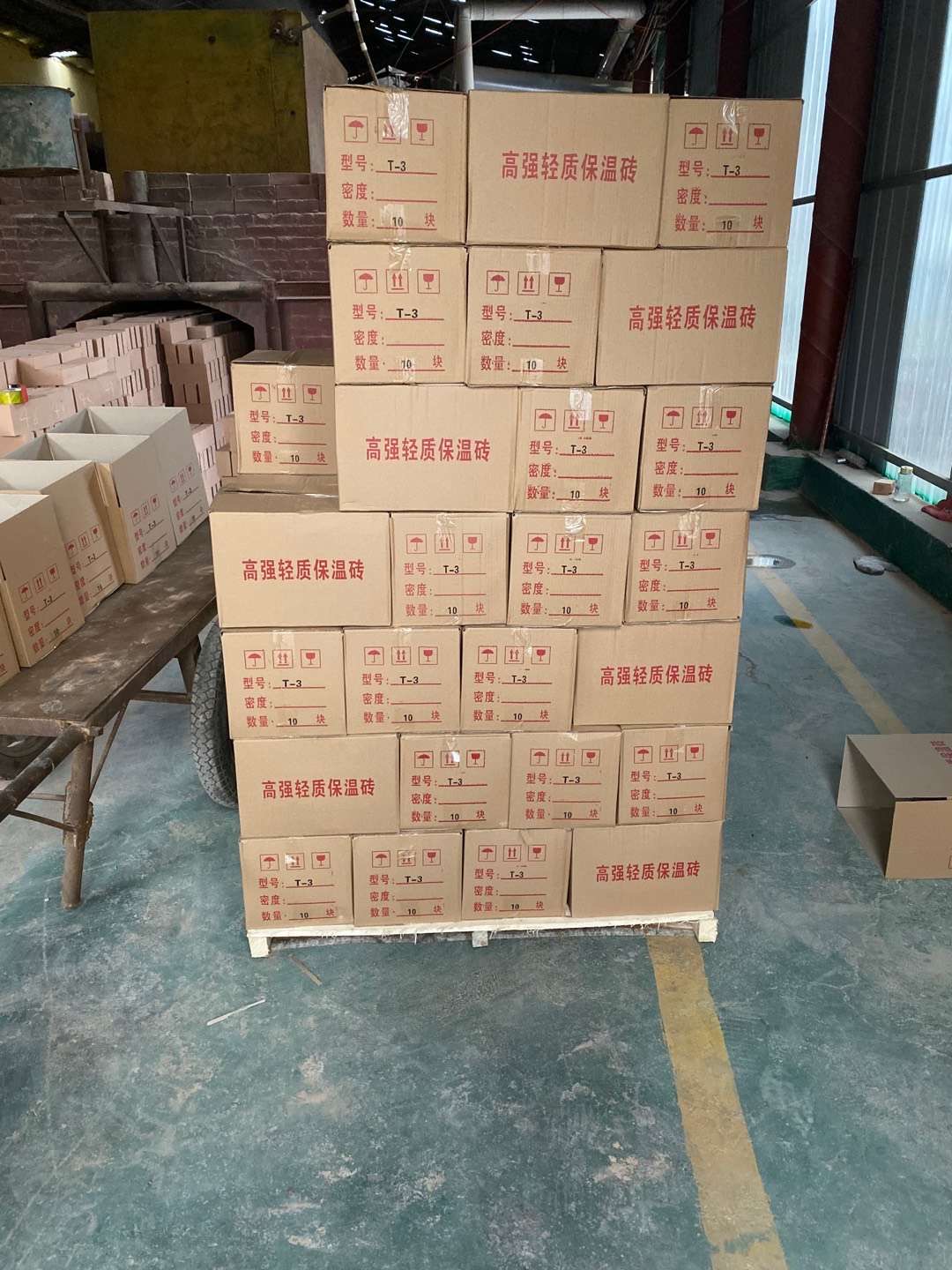

    Because JM23 JM26 JM28 insulation brick with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package mullite insulating brick with special packages to protect mullite bricks from damage.
    Mullite insulating brick is a new type of lightweight mullite bricks with 50-80% Al2O3, mullite (3Al2O32SiO2) as main crystalline phase and binder phase. JM23 JM26 JM28 insulation brick is widely used for working face inner lining that contact flame directly because high temperature stability and high strength, low thermal expansivity and good thermal shock resistance. Mullite insulating brick became one of the research focuses recent years. Mullite insulating brick adopts high-purity raw materials and unique production process to minimize the influence of impurities and structural defects on the performance of the product. Mullite insulating brick adapts to various furnace types and different construction environment well. Mullite insulating brick is high level insulation products for kiln and furnace, which can be used for higher temperature insulating layer than common insulating bricks.


    BrandsJM23-0.6JM23-0.8JM23-1.0JM26-0.6JM26-0.8JM26-1.0JM28-1.0JM28-1.2
    Bulk density g/cm3 ≥0.60.81.00.60.81.01.01.2
    CCS/Mpa ≥1.52.54.21.53.24.04.05
    thermal shock resistance(1100℃)/times ≥1020201020202020
    The reheating line changes by no more than 1% of the test temperature ℃/%≤1300*121300*121300*121400*121400*121400*121500*121500*12
    Thermal conductivity average temperature350±25℃(W/m.k)0.20.230.330.20.250.330.350.4
    Al2O3%≥4849505557576067
    Fe2O3%0.90.90.90.80.80.80.70.6


    Applications of Mullite Insulating Refractory Brick JM23 JM26 JM28:
    Glass industries iron & steel industries
    Ceramics industries non-ferrous metals industries
    Heat surface fireproof lining other fire-proof back lining
    Electrolytic Aluminum industries power generation industries


    Advantages of CH refractories Mullite Insulating Refractory Brick JM23 JM26 JM28:
    High strength
    Low thermal conductivity
    High temperature volume stability
    Customerize mould according to different size requirements for free
